Related Patents

• U.S. Patent 5,670,041, September, 1997
• U.S. Patent 5,710,536, January, 1998
• U.S. Patent 5,725,778, March, 1998
• U.S. Patent 5,776,334, July, 1998
• U.S. Patent 5,846,414, December, 1998
• U.S. Patent 5,916,490, June, 1999
• U.S. Patent 5,951,856, September, 1999

Major breakthrough #1 : Constant-Current-Source

• (U.S. Patent 5,725,778)

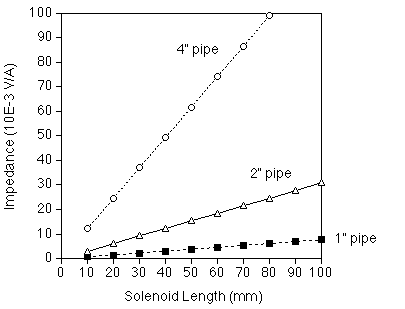

  Problem: When an electronic descaling unit was installed in a large pipe (i.e., > 3 in diameter), the output power significantly dropped.

  Solution: Constant-Current-Source



Major breakthrough #2 : Off-set coil

• (U.S. Patent 5,846,414)

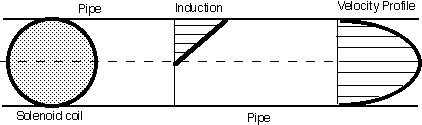

  Problem: Induction is zero at the center of pipe, where flow velocity is maximum.

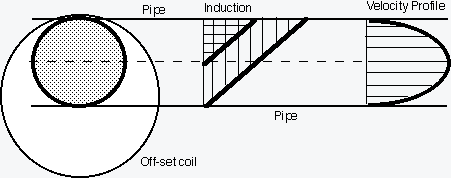

  Solution: Off-set coil

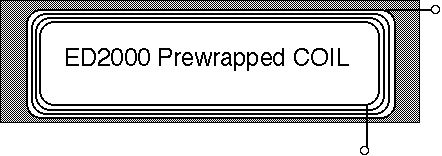

Major breakthrough #3 : Pre-wrapped coil

• (U.S. Patent 5,776,334)

  Problem: Manual wrapping at site is unsafe and impractical.

  Solution: Pre-wrapped coil



Actual Implementation

Offset and pre-wrapped coil with constant current source are integrated as shown below:
